ZC28-40
The ZC28-40 is a compact three-axis thread rolling machine designed for small and medium diameter parts (9-40mm).
It is ideal for producing standard bolts, threaded rods, and pipe fittings with high precision and stable roundness.

Manufacturers producing M10–M30 bolts, threaded rods, and small pipe fittings with moderate production volume.

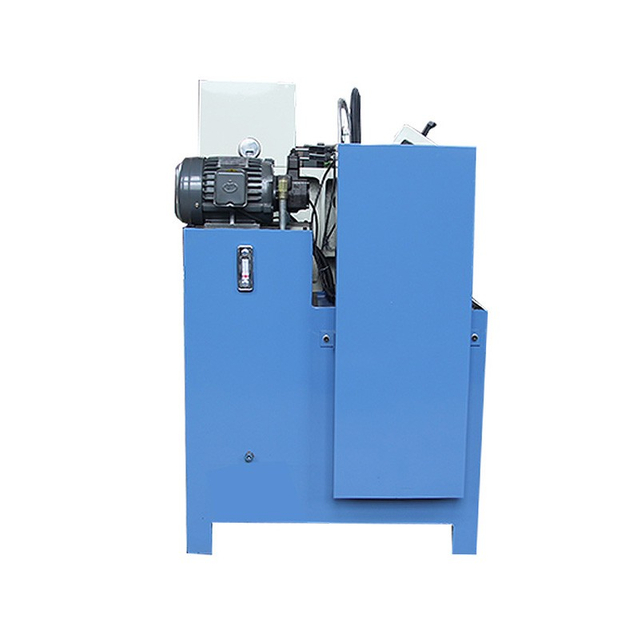

ZC28-40 Thread Rolling Machine4

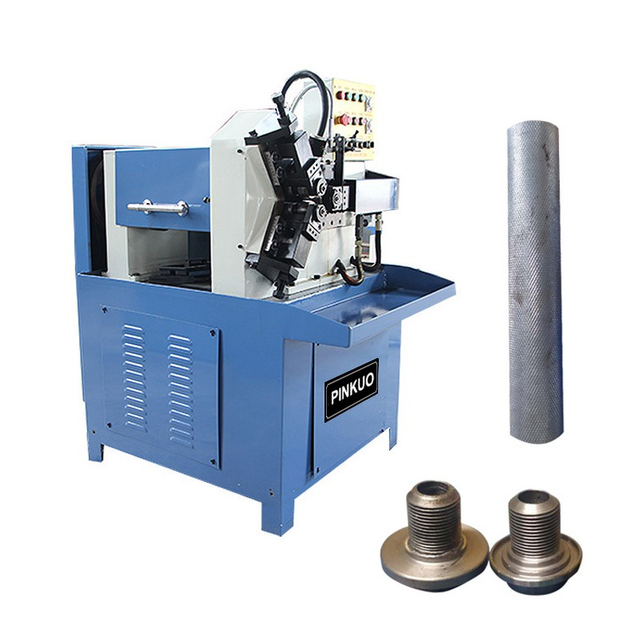

ZC28-40 Thread Rolling Machine5

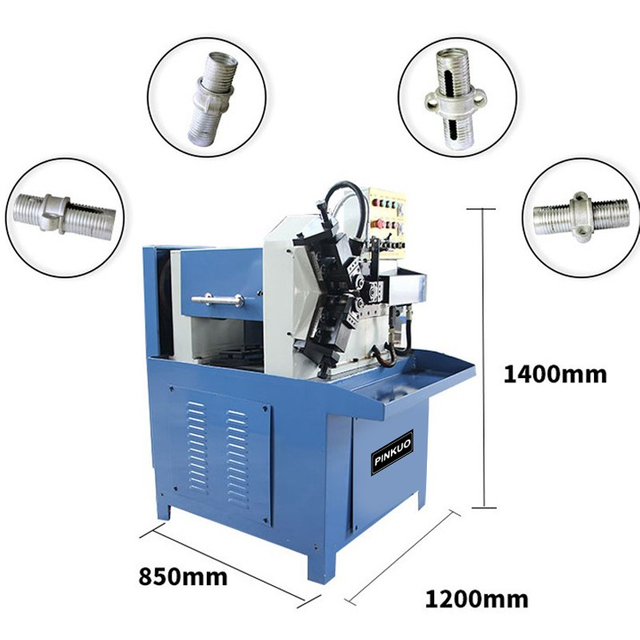

ZC28-40 Thread Rolling Machine3

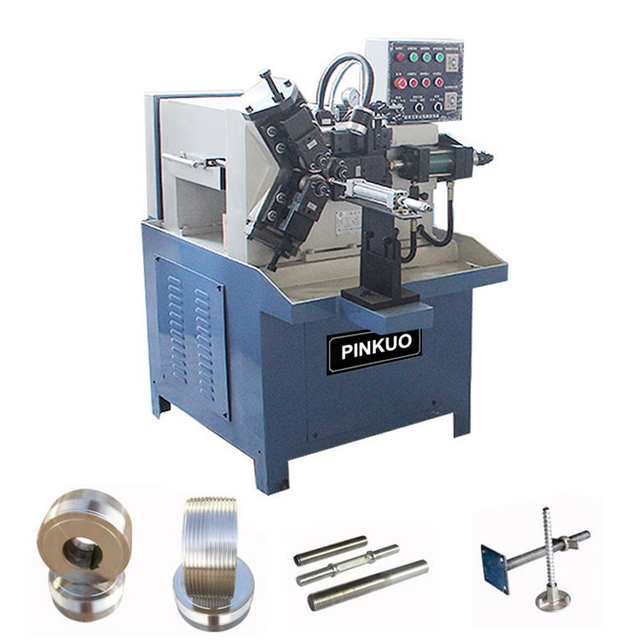

ZC28-40 Thread Rolling Machine2

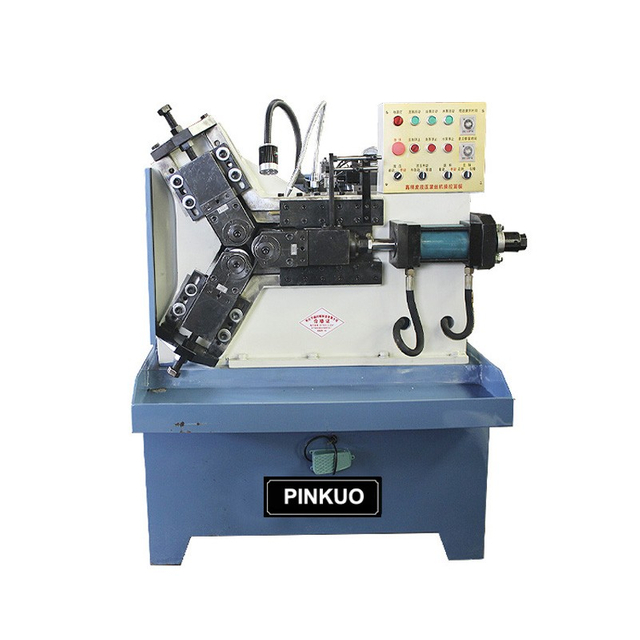

ZC28-40 Thread Rolling Machine7

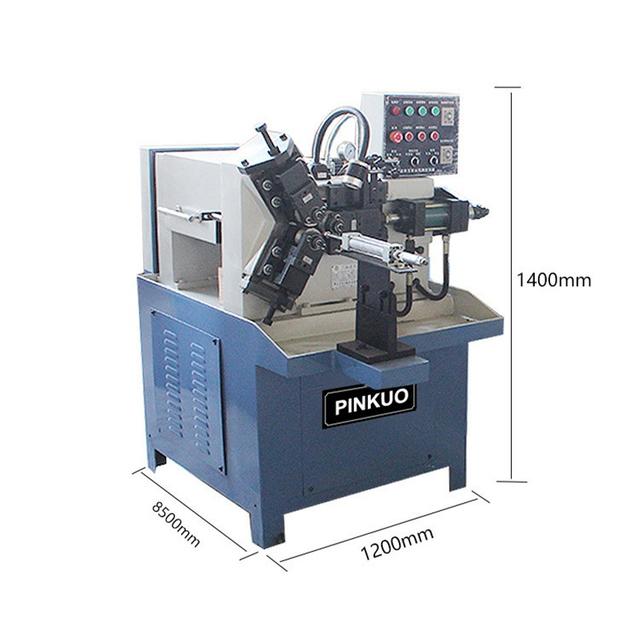

ZC28-40 Thread Rolling Machine6
Single Machine Demonstration Video
ZC28-40
Rolling Diameter 9-40mm Roller Shaft Stroke Spacing 55-90mm
The Length of Roll System unlimited Roller Shaft Angle ±3°
Rolling Volume 4-25 Active Power 1.5KW
Wheel Revolutions 350.600r.p.m Pitch Range 0.5P-2.5P
Outer Diameter of Roller Ф78mm (90mm) Hydraulic Power 1.5KW
Inner Diameter of Roller Ф25.4/Ф35 Weight 600kg±50kg
The Thickness of Roller 20-40mm Dimensions 1200*850*1400mm
ZC28-40
Rolling Diameter 9-40mm
The Length of Roll System unlimited
Rolling Volume 4-25
Wheel Revolutions 350.600r.p.m
Outer Diameter of Roller Ф78mm (90mm)
Inner Diameter of Roller Ф25.4/Ф35
The Thickness of Roller 20-40mm
Roller Shaft Stroke Spacing 55-90mm
Roller Shaft Angle ±3°
Active Power 1.5KW
Pitch Range 0.5P-2.5P
Hydraulic Power 1.5KW
Weight 600kg±50kg
Dimensions 1200*850*1400mm
钢

Carbon Steel

Low carbon steel (such as Q195, Q235)

Medium carbon steel (such as 45# steel)

Some high carbon steel

钢

Alloy Steel

40Cr

35CrMo

20CrMnTi, etc.

钢

Stainless Steel

304

316

201

铜

Copper
铝

Aluminum and aluminum alloys
锌合金

Zinc alloys
We have listed some of the most common materials suitable for thread rolling with our machines.
For additional material options, special requirements, or detailed technical parameters, please feel free to contact us.
Types of Rolled Threads
If you require other thread types not listed above, customized threads are available upon request.
PINKUO Machinable Thread

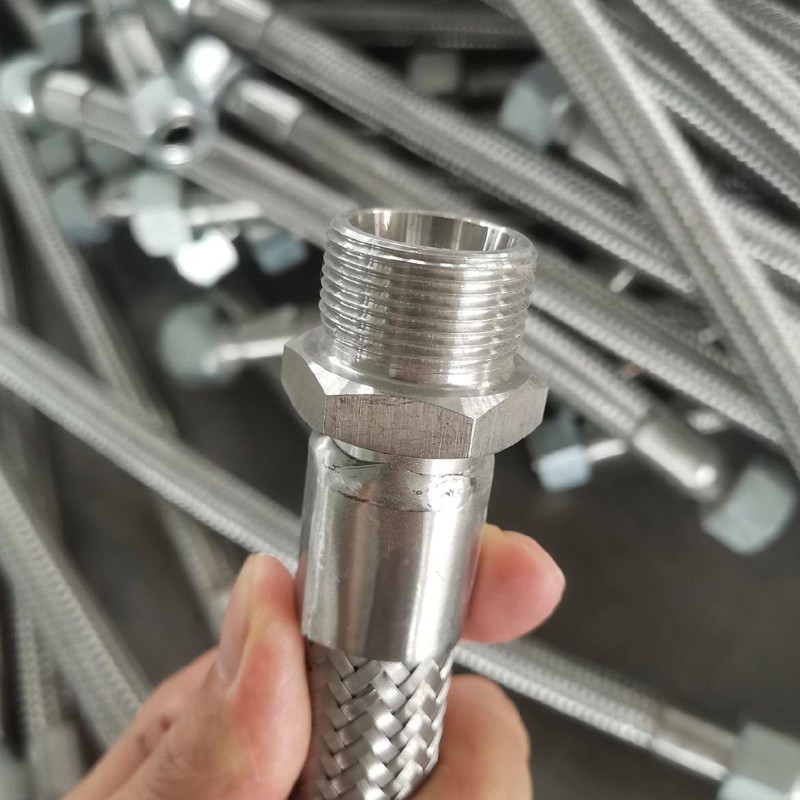

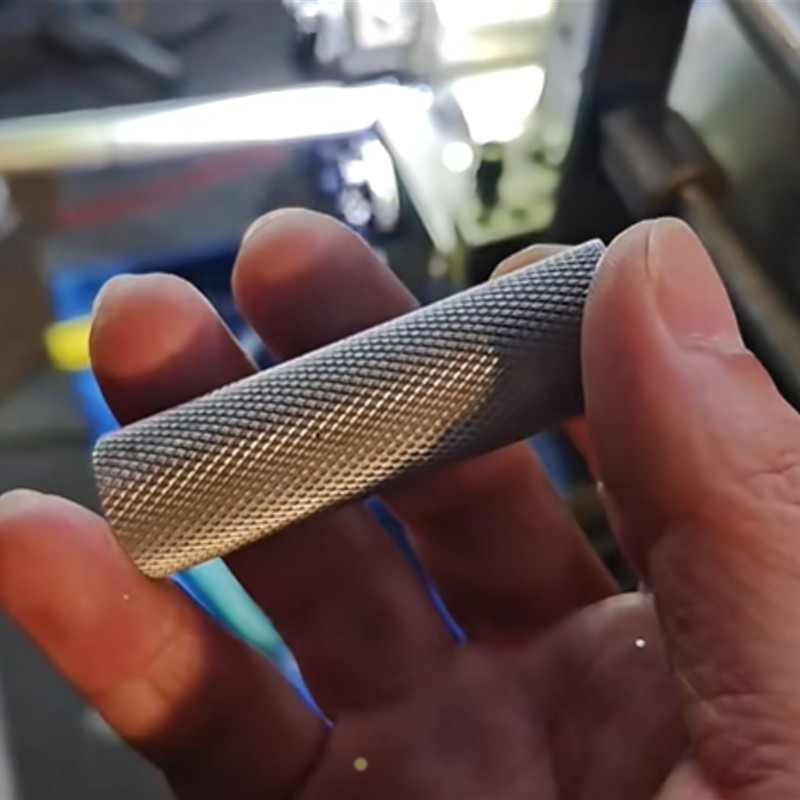

Machine-Made Workpiece Finished Product Display
we offer sample production and workpiece testing before machine purchase.

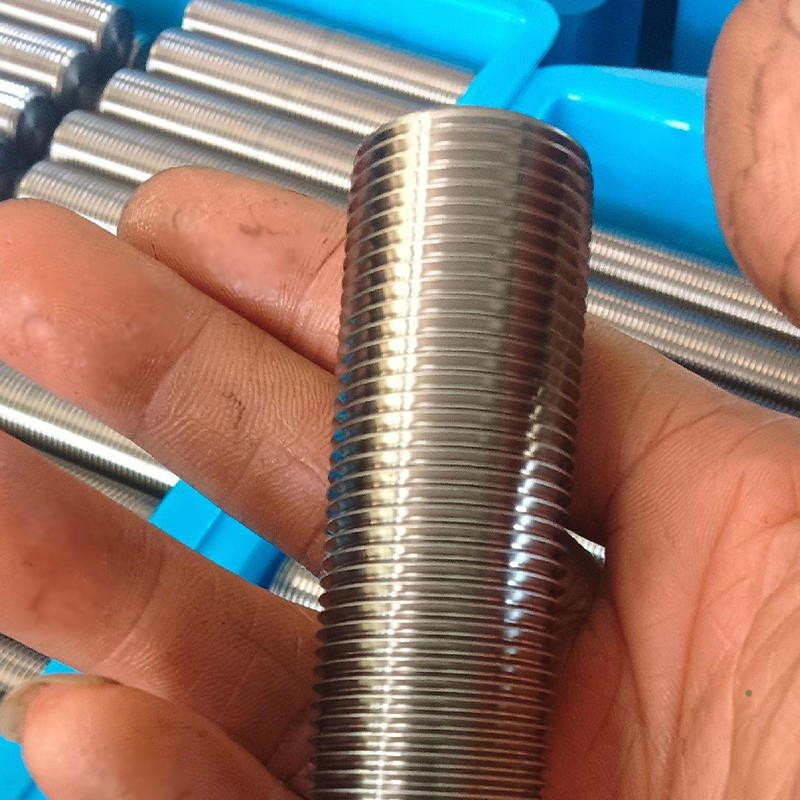

Machine-Made Workpiece Finished Product Display66
Machine-Made Workpiece Finished Product Display64

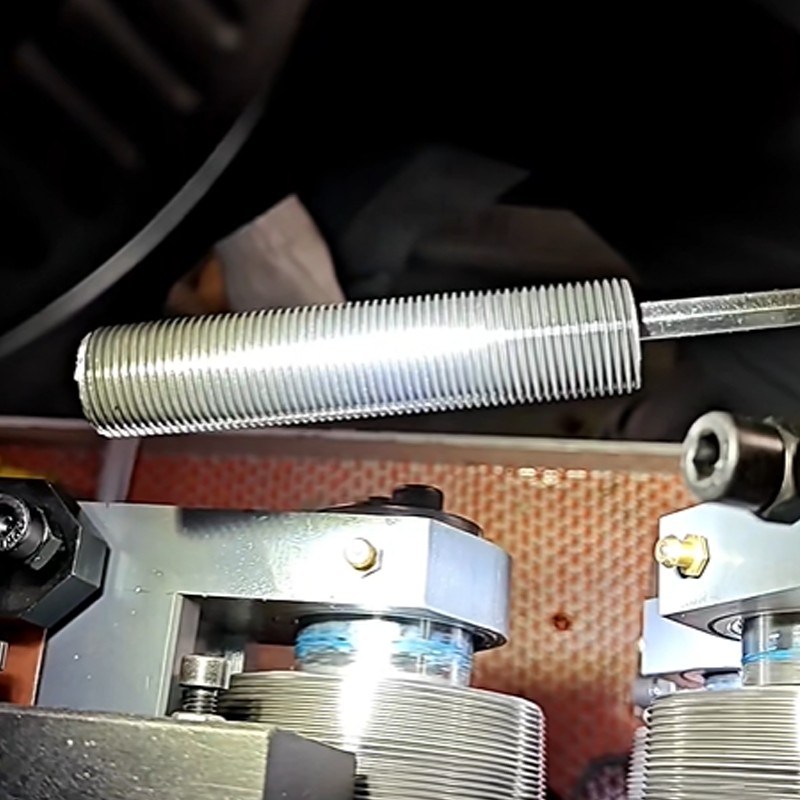

Machine-Made Workpiece Finished Product Display61
Machine-Made Workpiece Finished Product Display62

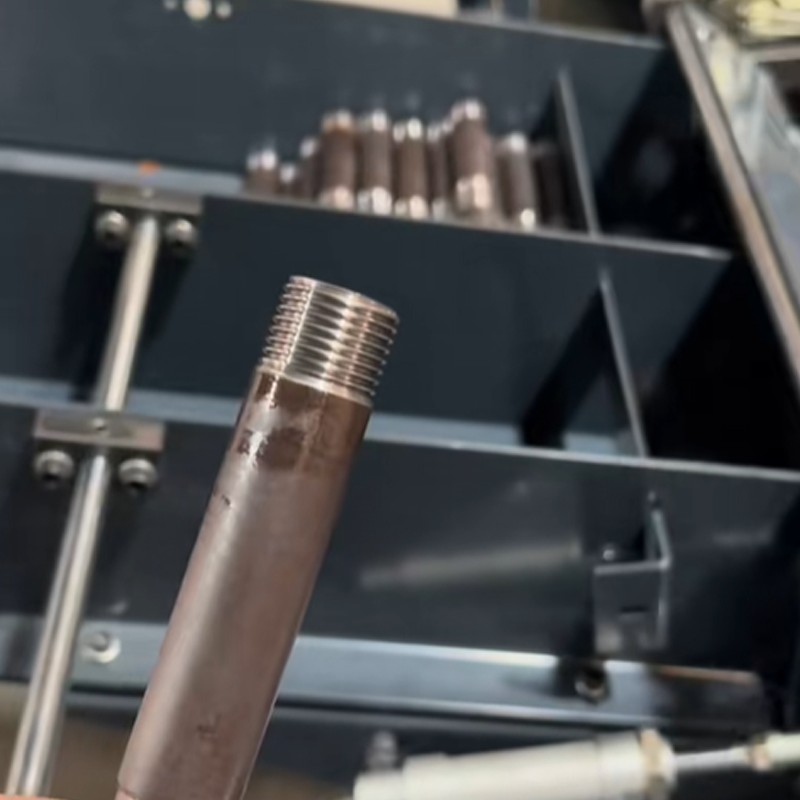

Machine-Made Workpiece Finished Product Display65

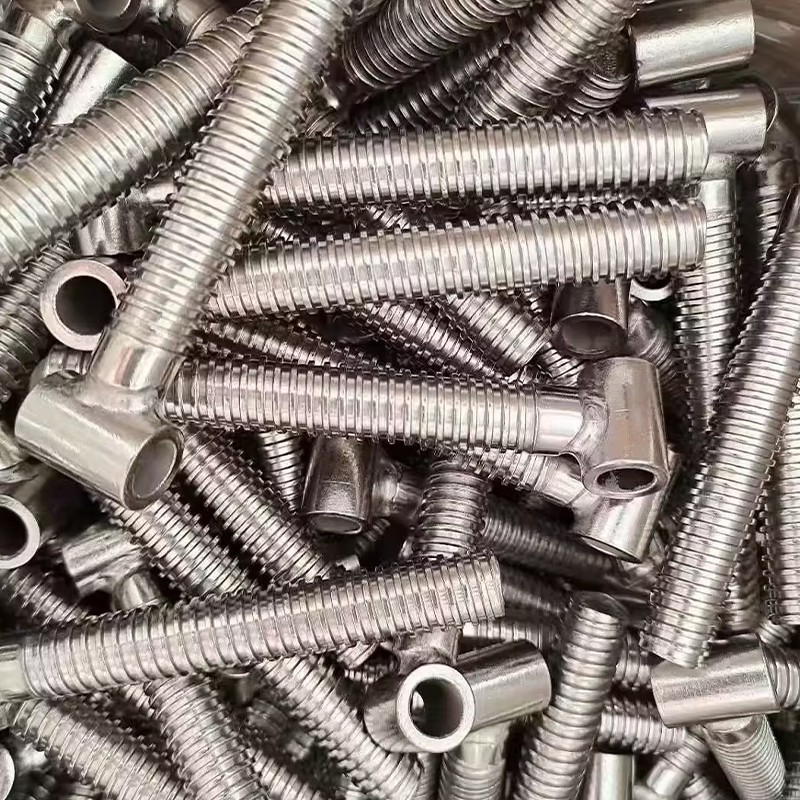

Machine-Made Workpiece Finished Product Display63
Thread Rolling Machine Details

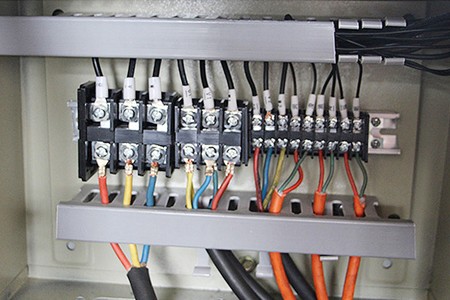

Electrical Control Cabinet

Electrical Control Cabinet

• Clear wiring layout
• One-button start & stop
• Stable control system

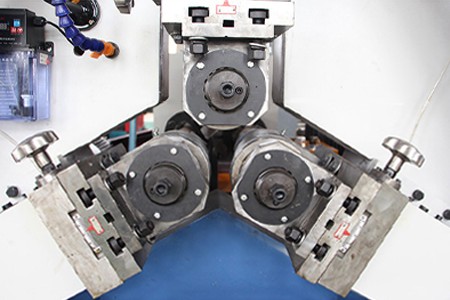

Precision Roller Holder

Precision Roller Holder

• Thick steel structure
• High rigidity design
• Stable threading accuracy

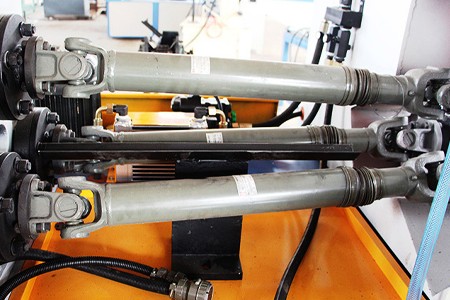

Drive Shaft

Drive Shaft

• Heat-treated steel
• Strong power transmission
• Low noise operation

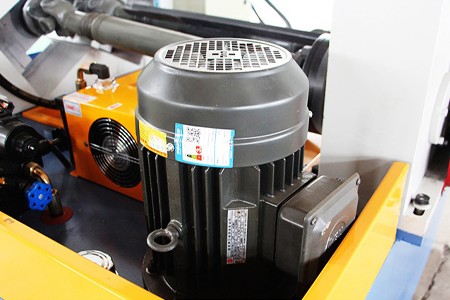

Hydraulic Power Unit

Hydraulic Power Unit

• Pure copper motor
• Powerful hydraulic drive
• Easy maintenance

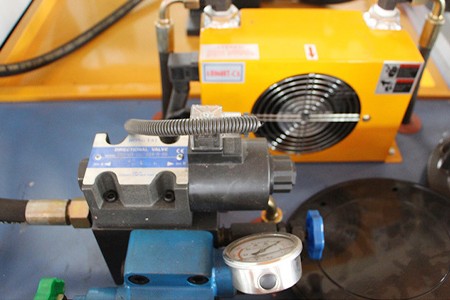

Electronic Control Valve

Electronic Control Valve

• Precise pressure control
• Stable oil flow
• Simple adjustment

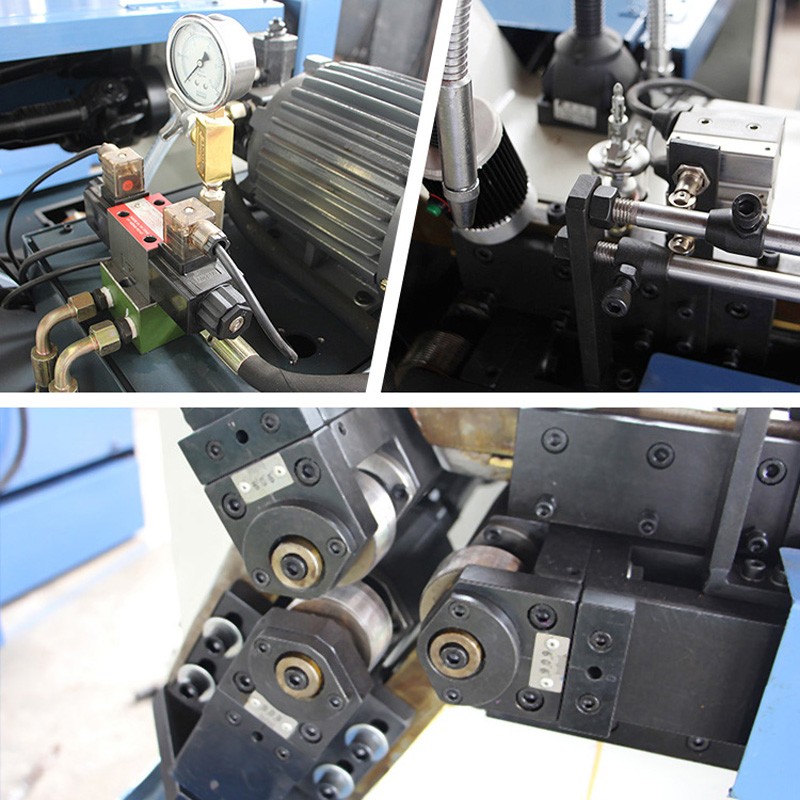

ZC28-40 Thread Rolling Machine

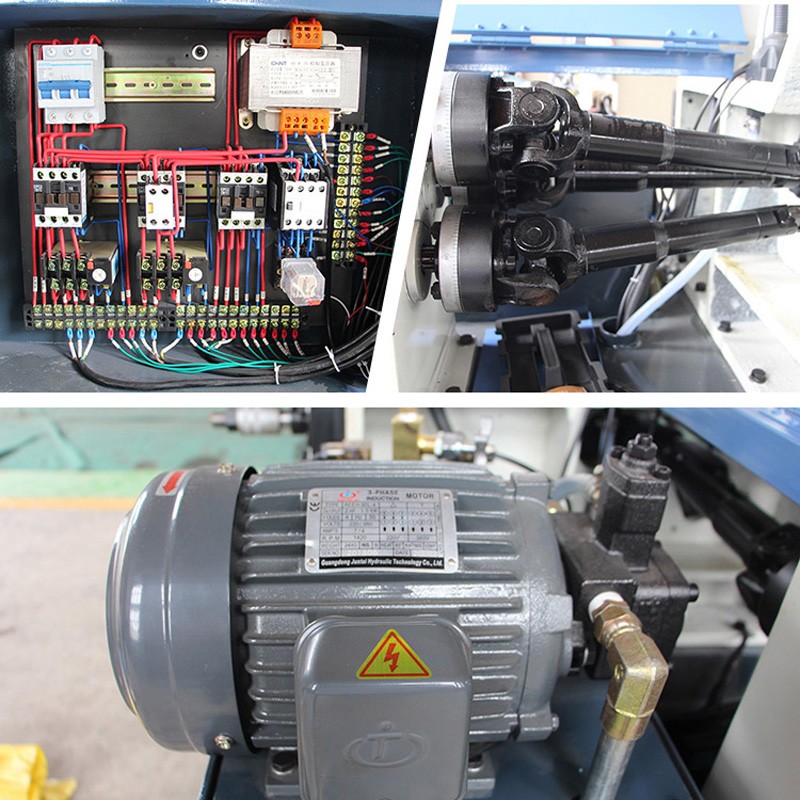

ZC28-40 Thread Rolling Machine1
3000+
Successful Experience
in Thread Rolling Projects
• Russian engineering group
25 new-generation thread rolling lines for anchoring and fastening systems, built for long-term high-intensity operation

• Vietnam large metal product manufacturer
100 Z28-150 thread rolling machines, 50 trimming & cutting machines for mass fastener production

• Mexico infrastructure distributor
45 ZA28-20 thread rolling machines with 600 sets of customized dies for multi-spec product switching

• Brazil fastener manufacturer
56 ZA28-20 thread rolling machines for construction threaded parts, high cost-performance with fast ROI

• Thailand machining factory
35 ZC28-6.3 thread rolling machines for mechanical parts, simple operation for quick workforce training

• Philippines construction material supplier
35 thread rolling machines and 50 reducing machines supporting construction product manufacturing

• Malaysia metal processing enterprise
30 Z28-650 thread rolling machines and 50 chamfering machines available for fast delivery and startup
About PinKuo

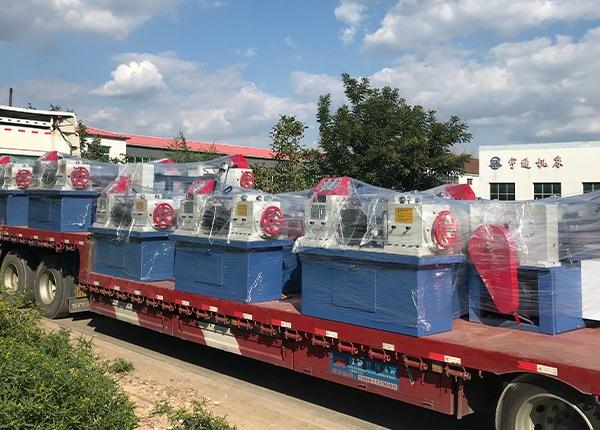

pinkuo factory4
The company’s main products include
• Two-axis thread rolling machines,
• Three-axis thread rolling machines,
• Spline processing machines,
• Reducing machines,
• And hollow grout anchor bolt production lines.
Can not only provide standardized single machines but also offer non-standard customized equipment and complete production line solutions according to customer needs.
地图
Our products have been exported to more than 60 countries and regions, with key coverage in Russia and CIS countries, South America (including Mexico, Brazil, Chile, Peru, Argentina, etc.), and Southeast Asia (including Thailand, Vietnam, Malaysia, and the Philippines).
