ZC28-60
The ZC28-60 is a heavy-duty model designed for larger workpieces (18-60mm diameter) and stronger rolling force.
It provides excellent stability when processing large bolts, anchor bolts, construction fasteners, and heavy threaded rods.

Equipped with a powerful motor and reinforced machine structure, it delivers reliable performance for industrial-scale production.

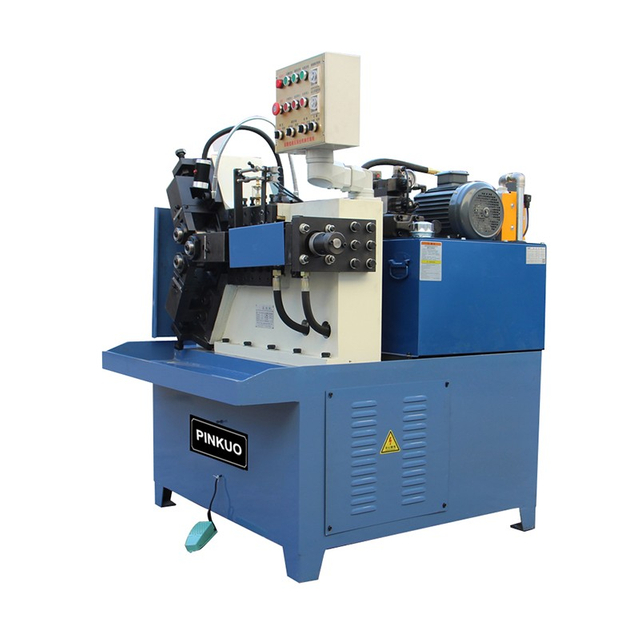

ZC28-60 Thread Rolling Machine

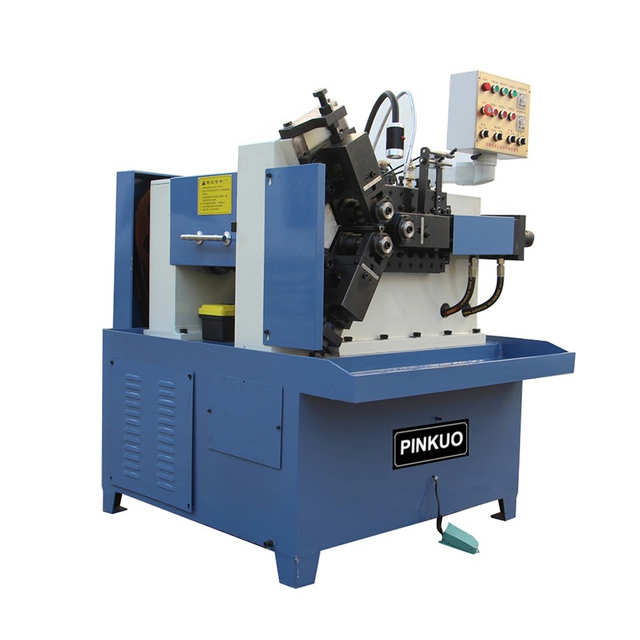

ZC28-60 Thread Rolling Machine1

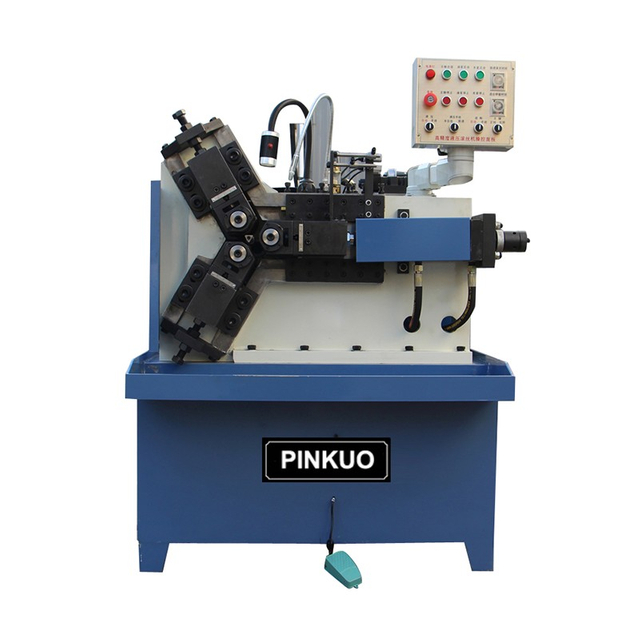

ZC28-60 Thread Rolling Machine2
Single Machine Demonstration Video
ZC28-60
Rolling Diameter 18-60mm Roller Shaft Stroke Spacing 55-120mm
The Length of Roll System unlimited Roller Shaft Angle ±3°
Rolling Volume 4-25 Active Power 4KW
Wheel Revolutions 350.600r.p.m Pitch Range 1P-3P
Outer Diameter of Roller Ф70mm (120mm) Hydraulic Power 2.2KW
Inner Diameter of Roller Ф40 Weight 1300kg
The Thickness of Roller 20-40mm Dimensions 1500*1400*1500mm
ZC28-60
Rolling Diameter 18-60mm
The Length of Roll System unlimited
Rolling Volume 4-25
Wheel Revolutions 350.600r.p.m
Outer Diameter of Roller Ф70mm (120mm)
Inner Diameter of Roller Ф40
The Thickness of Roller 20-40mm
Roller Shaft Stroke Spacing 55-120mm
Roller Shaft Angle ±3°
Active Power 4KW
Pitch Range 1P-3P
Hydraulic Power 2.2KW
Weight 1300kg
Dimensions 1500*1400*1500mm
钢

Carbon Steel

Low carbon steel (such as Q195, Q235)

Medium carbon steel (such as 45# steel)

Some high carbon steel

钢

Alloy Steel

40Cr

35CrMo

20CrMnTi, etc.

钢

Stainless Steel

304

316

201

铜

Copper
铝

Aluminum and aluminum alloys
锌合金

Zinc alloys
We have listed some of the most common materials suitable for thread rolling with our machines.
For additional material options, special requirements, or detailed technical parameters, please feel free to contact us.
Types of Rolled Threads
If you require other thread types not listed above, customized threads are available upon request.
PINKUO Machinable Thread
Machine-Made Workpiece Finished Product Display
we offer sample production and workpiece testing before machine purchase.

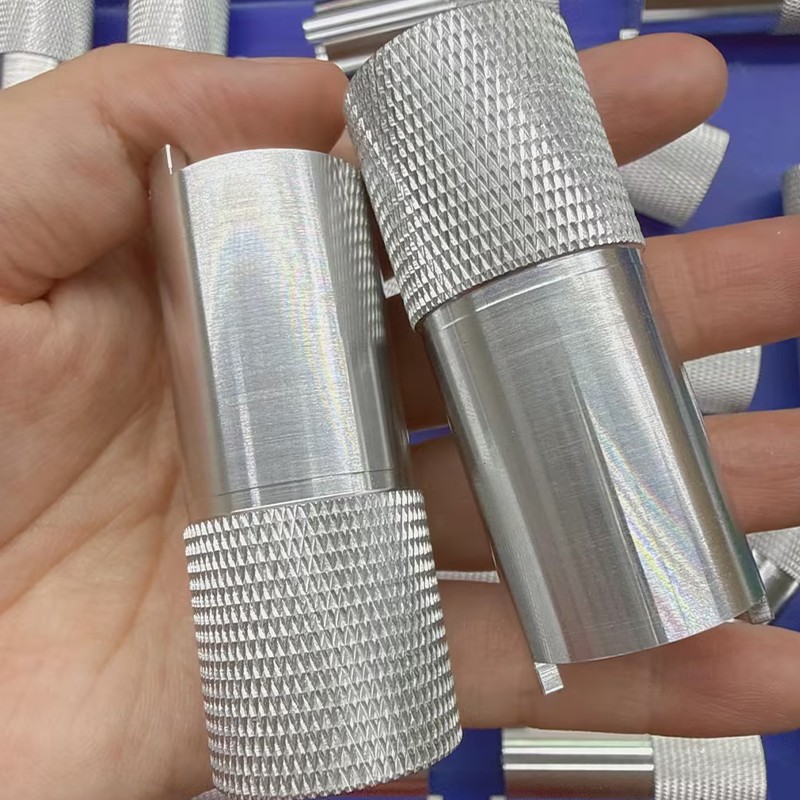

Machine-Made Workpiece Finished Product Display69

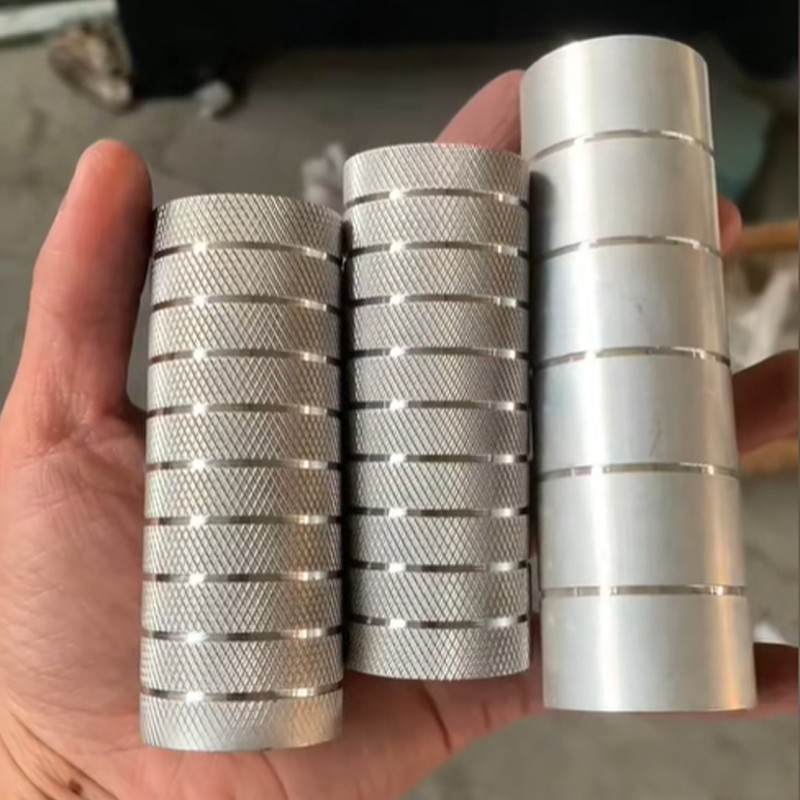

Machine-Made Workpiece Finished Product Display72

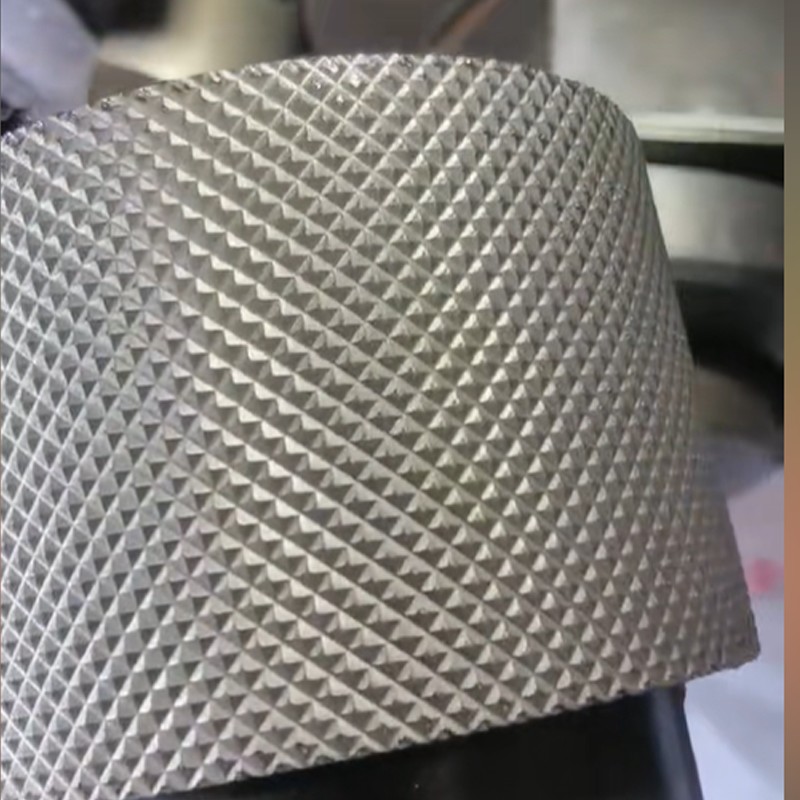

Machine-Made Workpiece Finished Product Display71

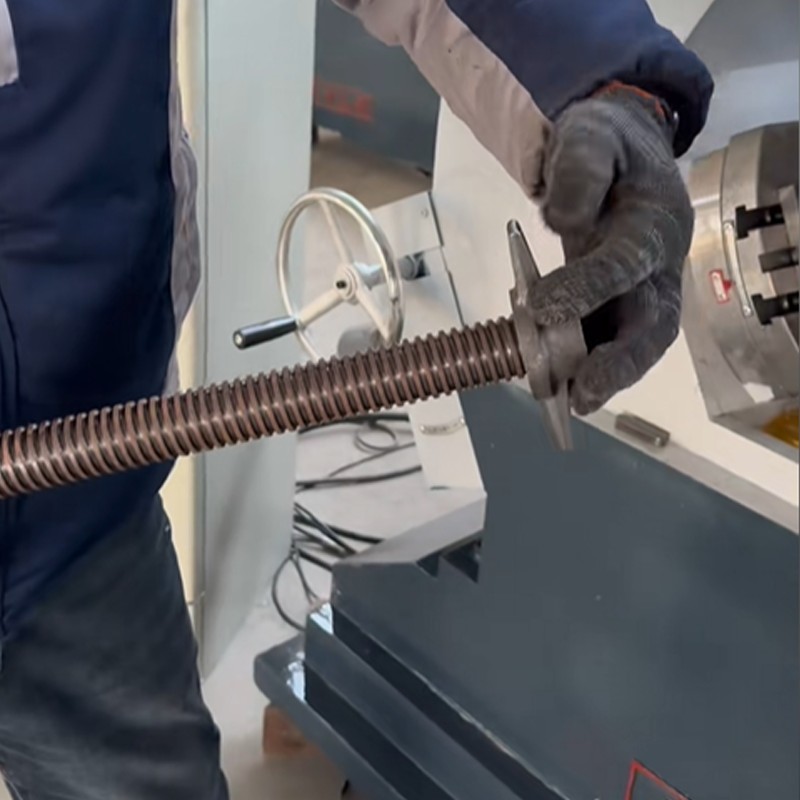

Machine-Made Workpiece Finished Product Display67

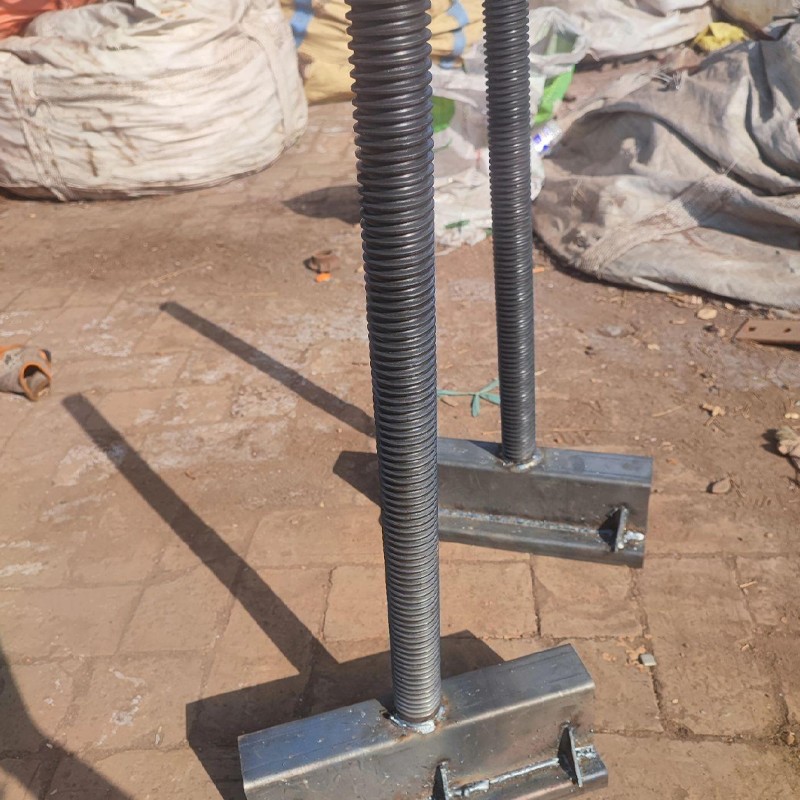

Machine-Made Workpiece Finished Product Display70

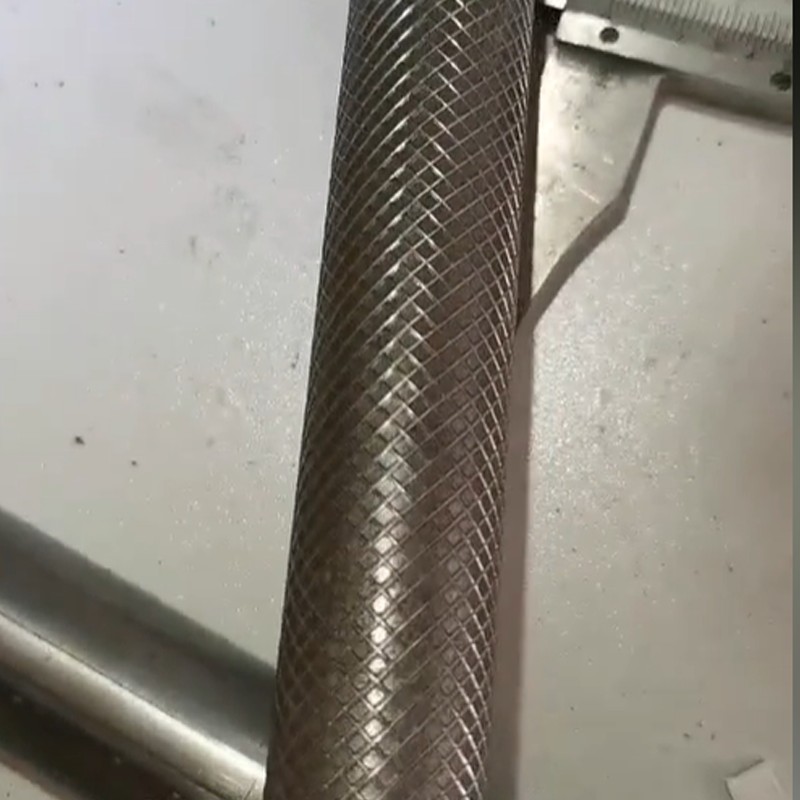

Machine-Made Workpiece Finished Product Display68
Thread Rolling Machine Details
Electrical Control Cabinet

Electrical Control Cabinet

• Clear wiring layout
• One-button start & stop
• Stable control system


Precision Roller Holder

Precision Roller Holder

• Thick steel structure
• High rigidity design
• Stable threading accuracy


Drive Shaft

Drive Shaft

• Heat-treated steel
• Strong power transmission
• Low noise operation


Hydraulic Power Unit

Hydraulic Power Unit

• Pure copper motor
• Powerful hydraulic drive
• Easy maintenance


Electronic Control Valve

Electronic Control Valve

• Precise pressure control
• Stable oil flow
• Simple adjustment


3000+
Successful Experience
in Thread Rolling Projects
• Russian engineering group
25 new-generation thread rolling lines for anchoring and fastening systems, built for long-term high-intensity operation

• Vietnam large metal product manufacturer
100 Z28-150 thread rolling machines, 50 trimming & cutting machines for mass fastener production

• Mexico infrastructure distributor
45 ZA28-20 thread rolling machines with 600 sets of customized dies for multi-spec product switching

• Brazil fastener manufacturer
56 ZA28-20 thread rolling machines for construction threaded parts, high cost-performance with fast ROI

• Thailand machining factory
35 ZC28-6.3 thread rolling machines for mechanical parts, simple operation for quick workforce training

• Philippines construction material supplier
35 thread rolling machines and 50 reducing machines supporting construction product manufacturing

• Malaysia metal processing enterprise
30 Z28-650 thread rolling machines and 50 chamfering machines available for fast delivery and startup
About PinKuo

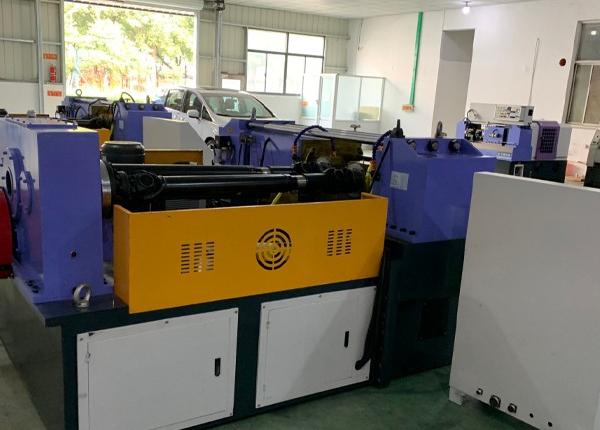

pinkuo factory5
The company’s main products include
• Two-axis thread rolling machines,
• Three-axis thread rolling machines,
• Spline processing machines,
• Reducing machines,
• And hollow grout anchor bolt production lines.
Can not only provide standardized single machines but also offer non-standard customized equipment and complete production line solutions according to customer needs.
地图
Our products have been exported to more than 60 countries and regions, with key coverage in Russia and CIS countries, South America (including Mexico, Brazil, Chile, Peru, Argentina, etc.), and Southeast Asia (including Thailand, Vietnam, Malaysia, and the Philippines).
Other Machines
ZC28-6.3
Model: ZC28-6.3
● Max rolling pressure: 200KN
● Axial feed diameter: Φ20-80mm
ZC28-12.5
● Model: ZC28-12.5
● Max rolling pressure: 300KN
● Axial feed diameter: Φ30-120mm
ZC28-40
● Model: ZC28-40
● Axial feed diameter: Φ9-40mm
