Z28-150
PINKUO

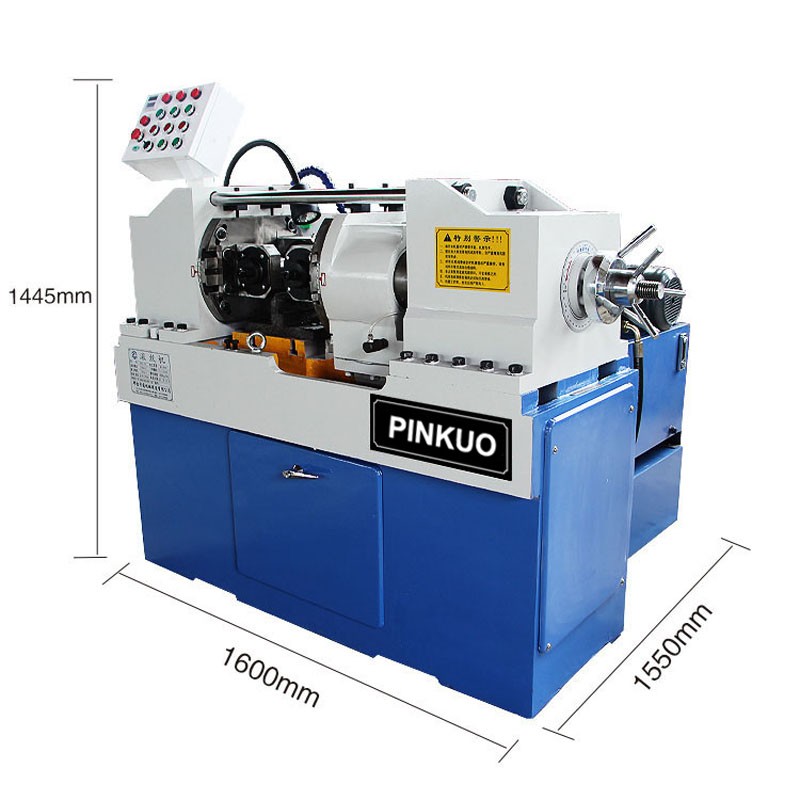

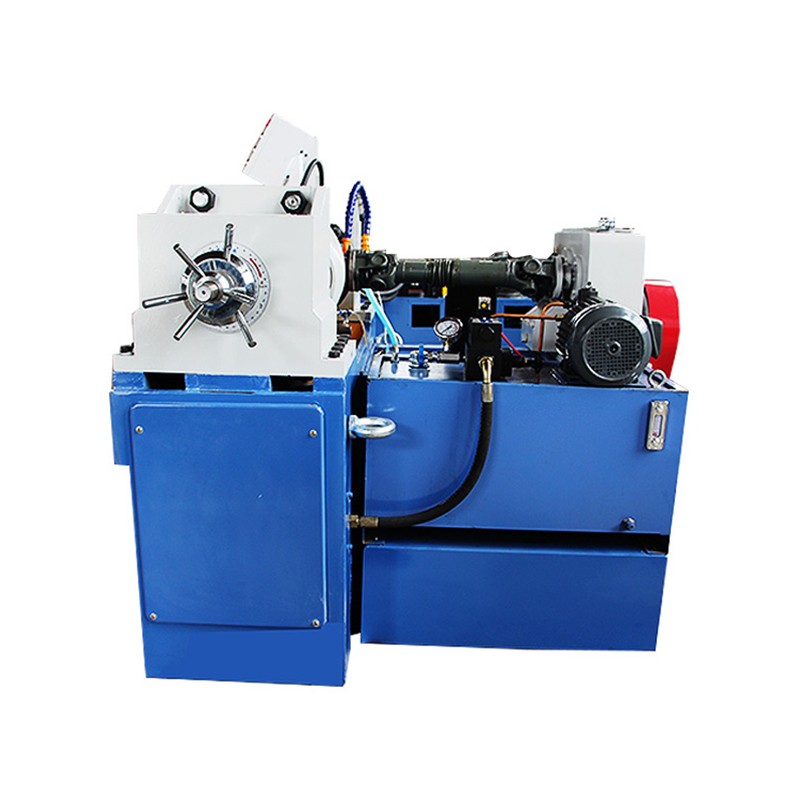

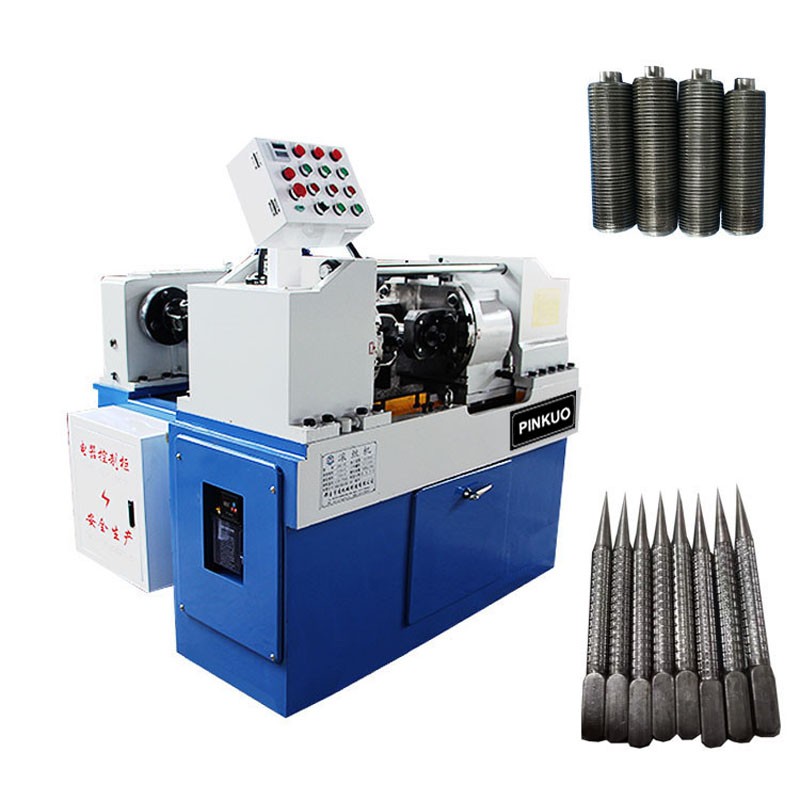

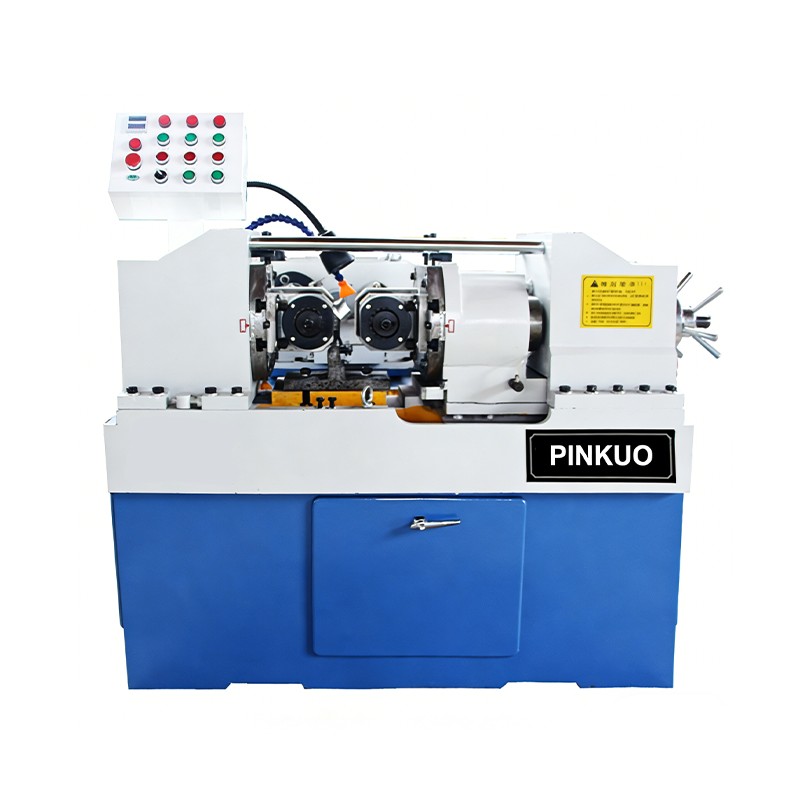

PINKUO Thread Rolling Machine: cnc thread rolling machine

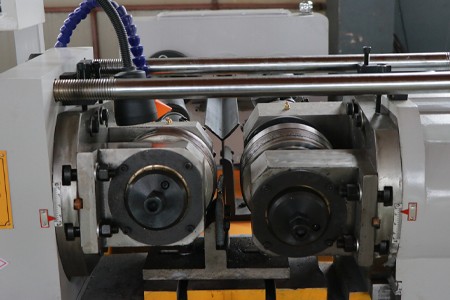

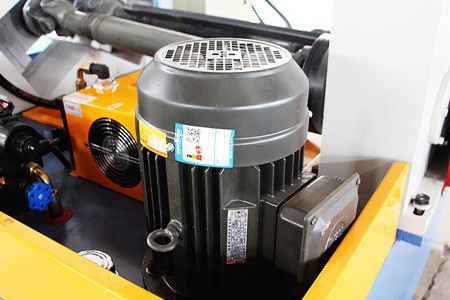

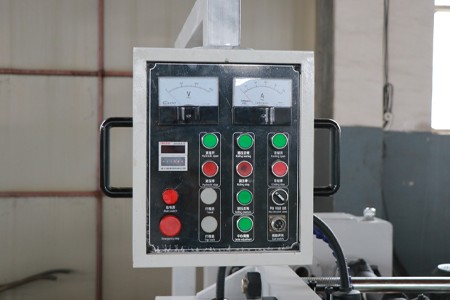

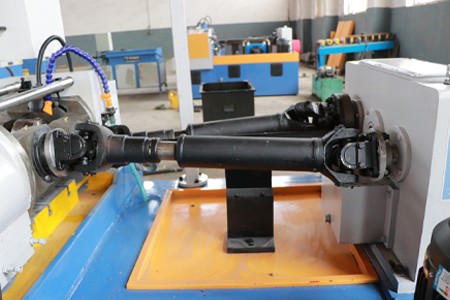

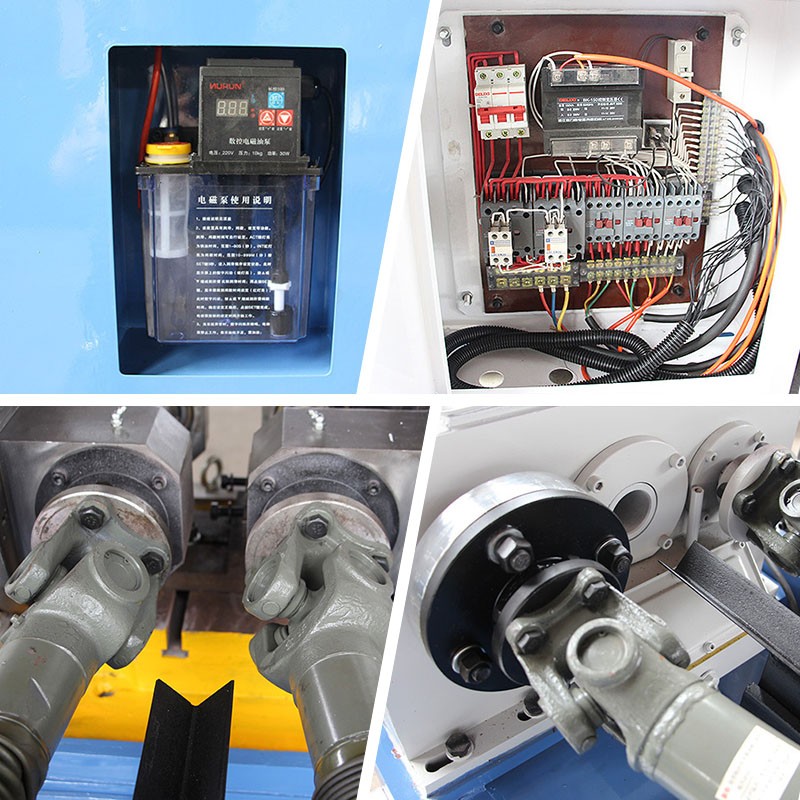

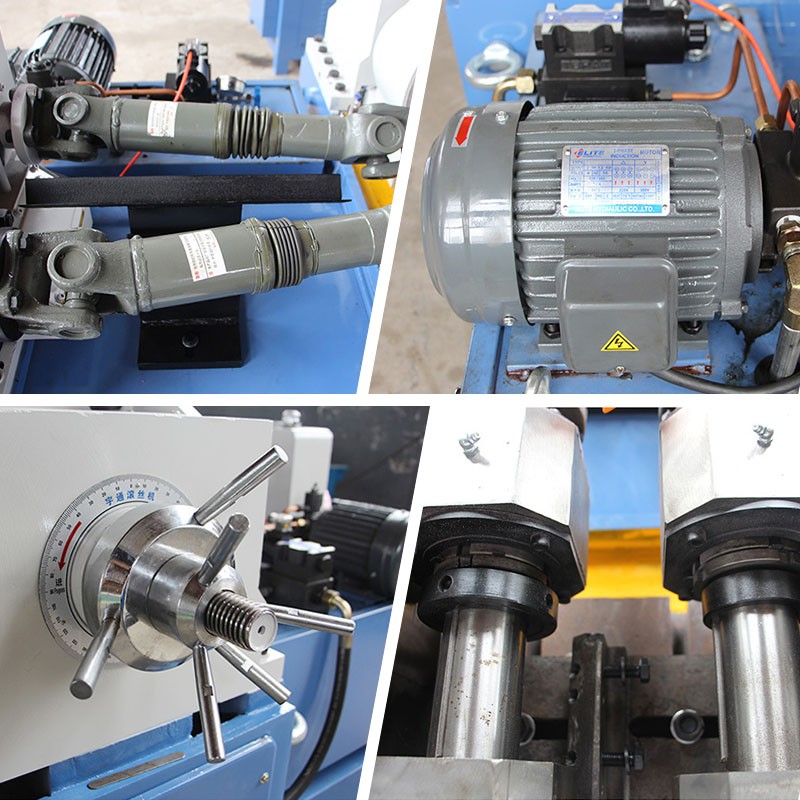

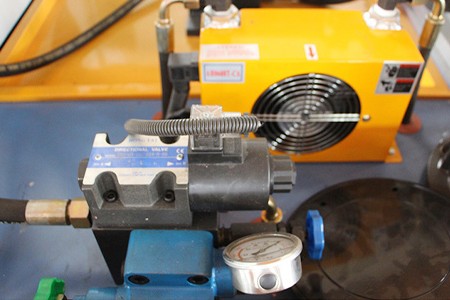

MACHINE DETAILS
MACHINE OPERATION
The machine is suitable for producing various external threads, such as bolts, screws, shafts, and automotive fasteners. With features including automatic feeding, adjustable rolling parameters, and user-friendly operation, it offers outstanding efficiency while reducing material waste and production costs. Its rigid structure and reliable hydraulic/mechanical system guarantee stable operation and long service life, making it an ideal solution for modern fastener manufacturing industries.
TECHNICAL SPECIFICATIONS
| Model | Z28-150 | Outer Roller Diameter | Φ120–Φ170mm |
| Max Rolling Pressure | 180KN | Inner Roller Diameter | Φ54mm |
| Length | Unlimited | Max Thickness of Roller | 100mm |
| Rolling Material Diameter Range (Radial Feed) | Φ6–Φ50mm | Dimensions | 1600 × 1550 × 1445mm |
| Rolling Material Diameter Range (Axial Feed) | Φ6–Φ42mm | Axis Tilt Angle | ±5° |
| Spindle Speed | 36, 47, 60, 78 (r/min) | Weight | 1800kg / 2000kg |
| Active Power | 5.5kW | Spindle Center Distance | 120–240mm |
| Hydraulic Power | 1.5kW-4 | Packing Dimensions | 1800 × 1700 × 1700mm |
| Cooling Power | 90W | ||

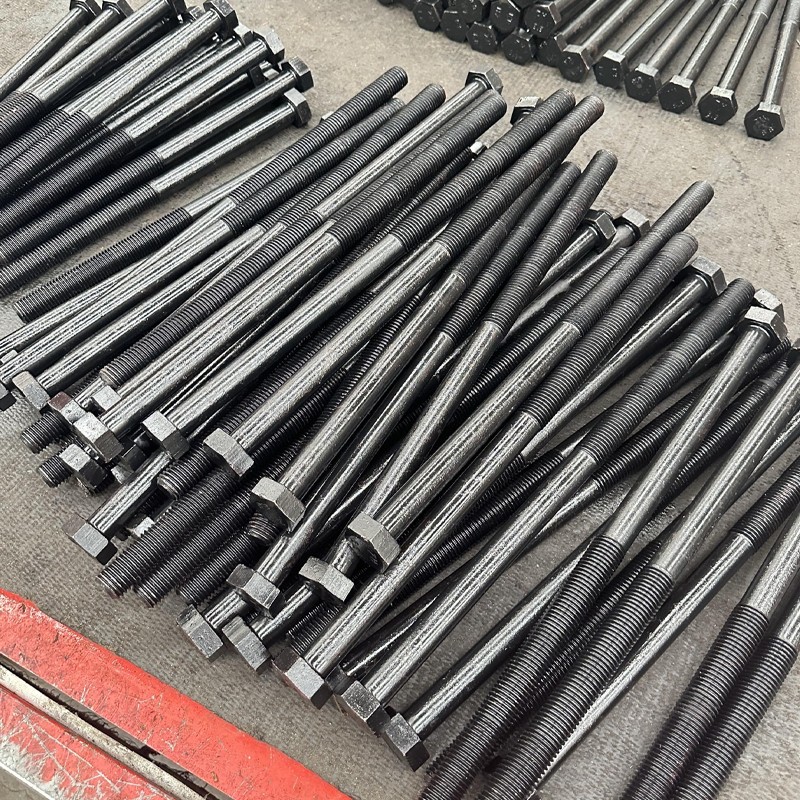

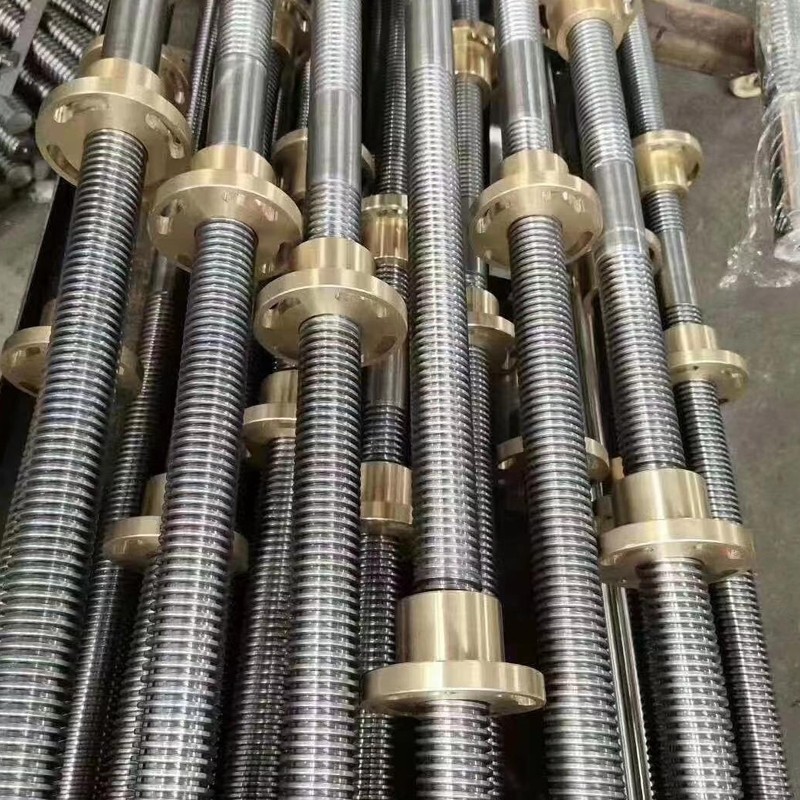

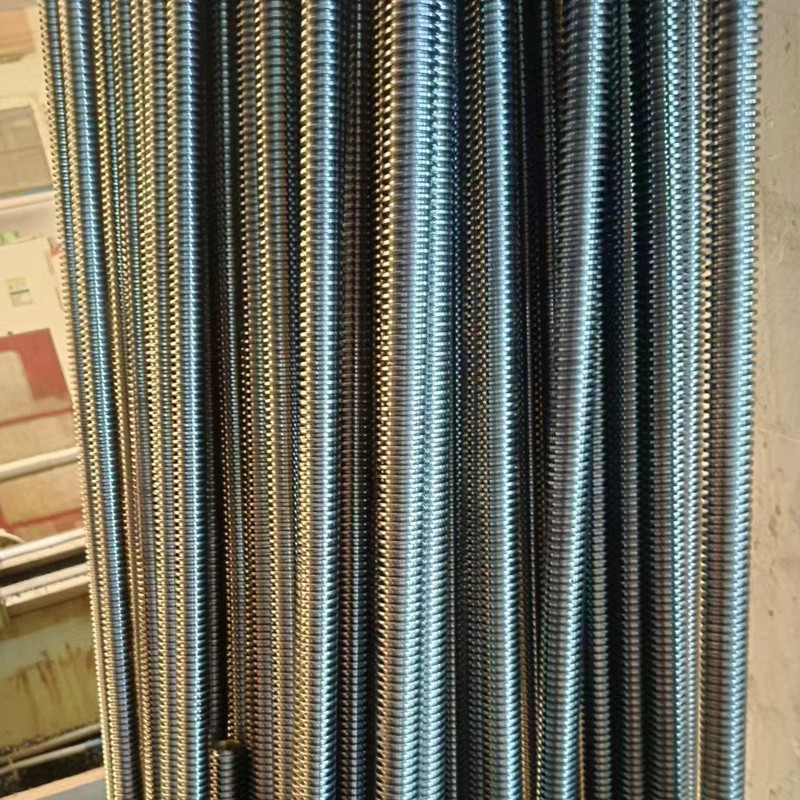

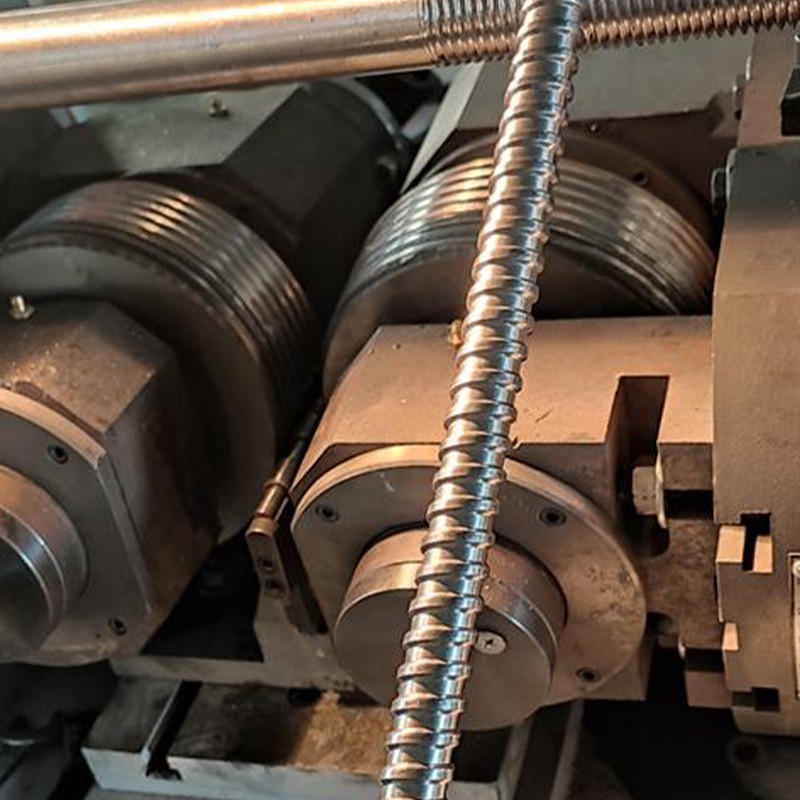

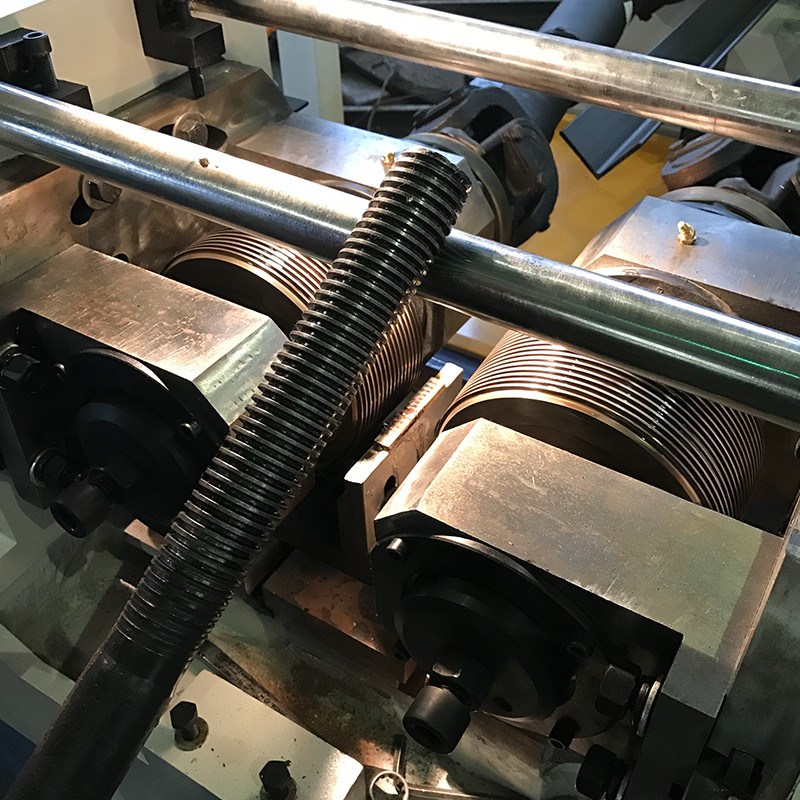

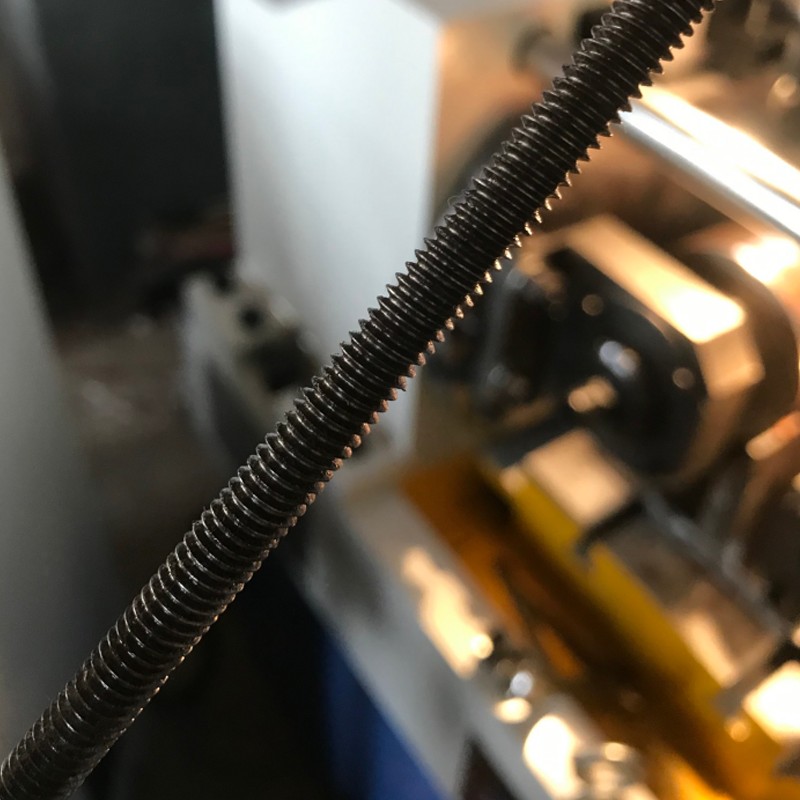

FINISHED WORKPIECES
High precision thread forming with smooth surface finish.
Strong thread strength without damaging material structure.
Suitable for bolts, threaded rods, anchors, and industrial fasteners.
Suitable for bolts, threaded rods, anchors, and industrial fasteners.
Clean and burr-free thread forming process.
Compatible with multiple thread sizes and specifications.
Supports various international thread standards.
Efficient and reliable thread rolling solutions for various applications.
CUSTOMER VISITS
Meeting customers from around the world.
Long-term partnership based on quality and service.
Showcasing our latest thread rolling solutions.
Demonstrating machine operation and production process.

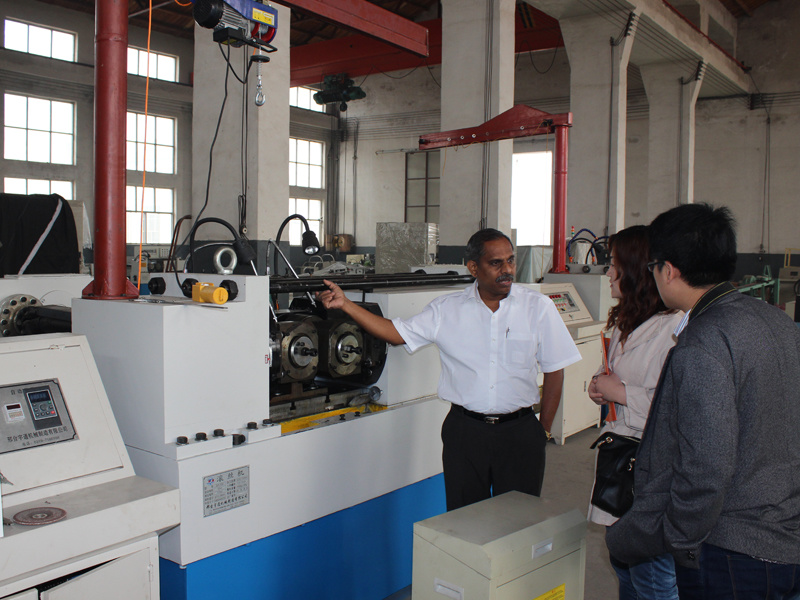

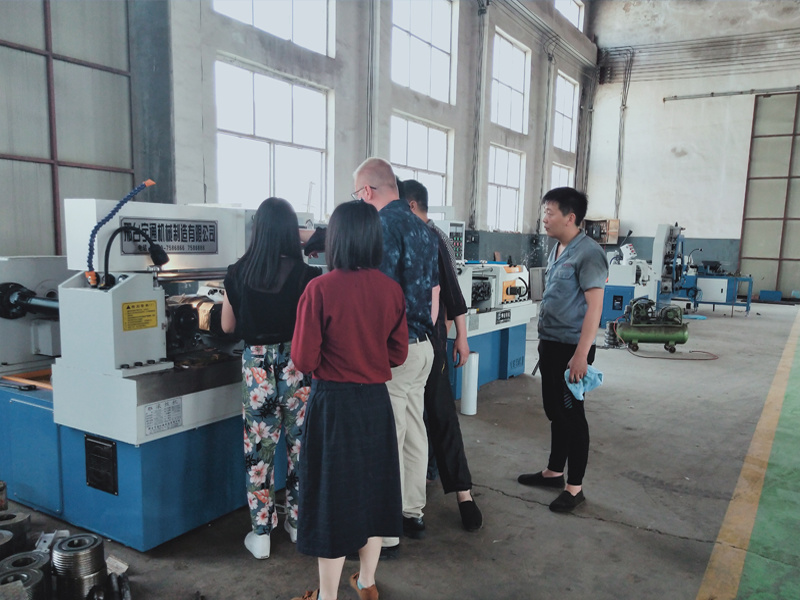

Customers visiting our production workshop.
On-site machine inspection and technical discussion.

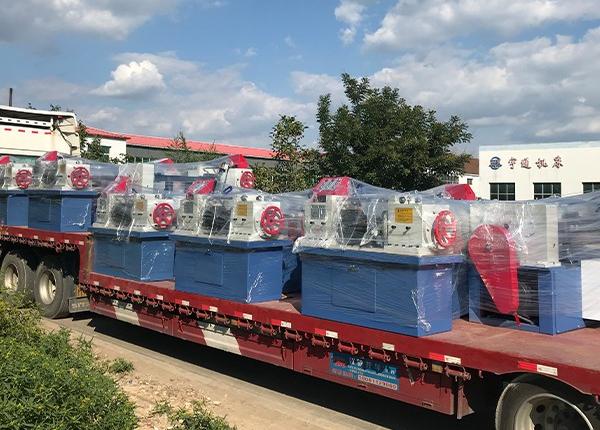

Exported to many countries and regions worldwide.
Rich experience in international cooperation and OEM/ODM projects.
Professional technical support and after-sales service.
Dedicated to building long-term business partnerships.

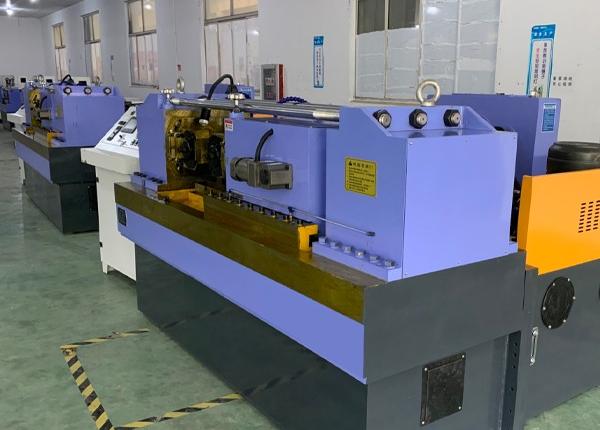

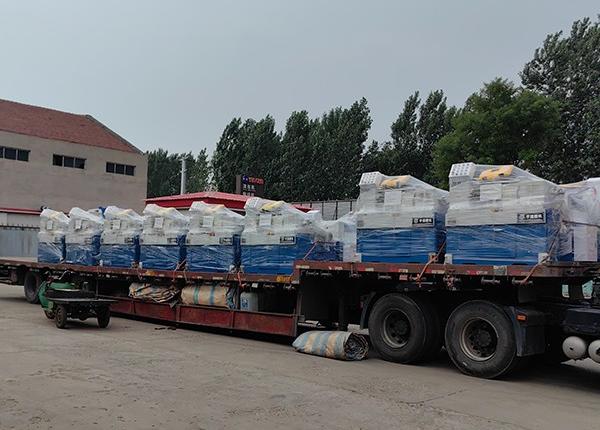

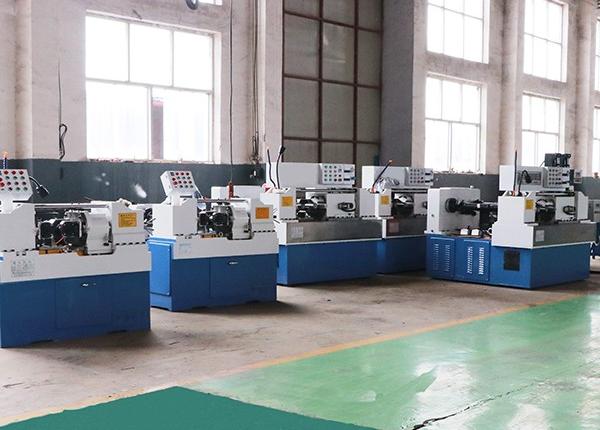

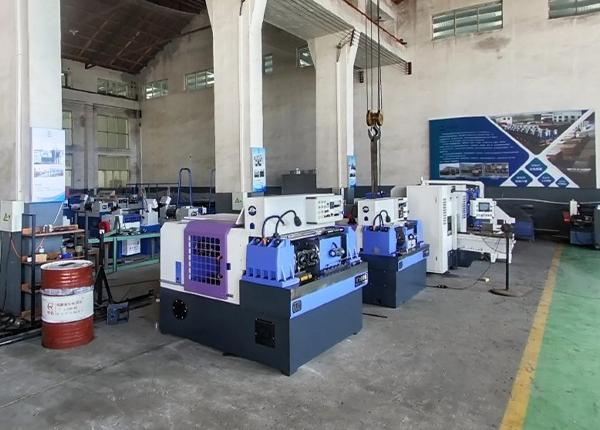

PINKUO FACTORY
Careful assembly and quality inspection before delivery.
Reliable manufacturing process for durable machines.
Professional manufacturer with rich industry experience.
OEM & ODM support available.
Dedicated to providing high-quality machinery solutions worldwide.
Get stable quality and professional service from an experienced factory.
Talk with our sales team for customized machine solutions.
OEM & ODM Solutions for Global Brands and Distributors.
Customized Machines for Different Production Requirements.
Professional Support for Dealers, Importers, and Manufacturers.
Flexible Solutions for Your Market Needs.
