Two-Axis vs Three-Axis Thread Rolling Machines: Key Differences and Applications

When selecting a thread rolling machine, understanding the difference between two-axis and three-axis designs is essential. While both are used for thread rolling, their structure, working principles, and applications are quite different.

In this article, we’ll break down how to identify them and, more importantly, how to choose the right one for your production needs.

1. Easy Identification by Machine Structure

The simplest way to distinguish between the two types is by their external structure.

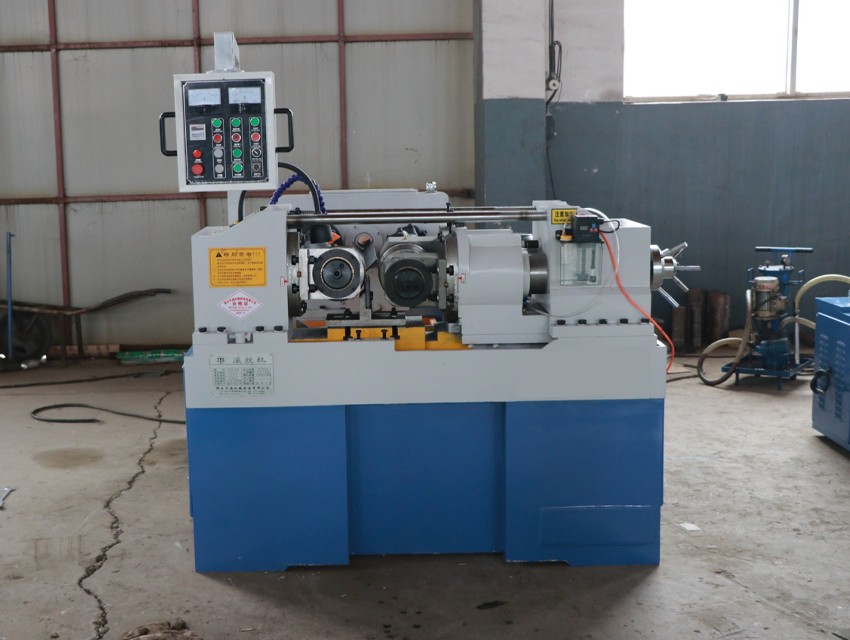

Two-Axis Thread Rolling Machine

• Equipped with two rolling dies (rollers)

• The workpiece is supported and formed between these two dies

• Common and widely used design

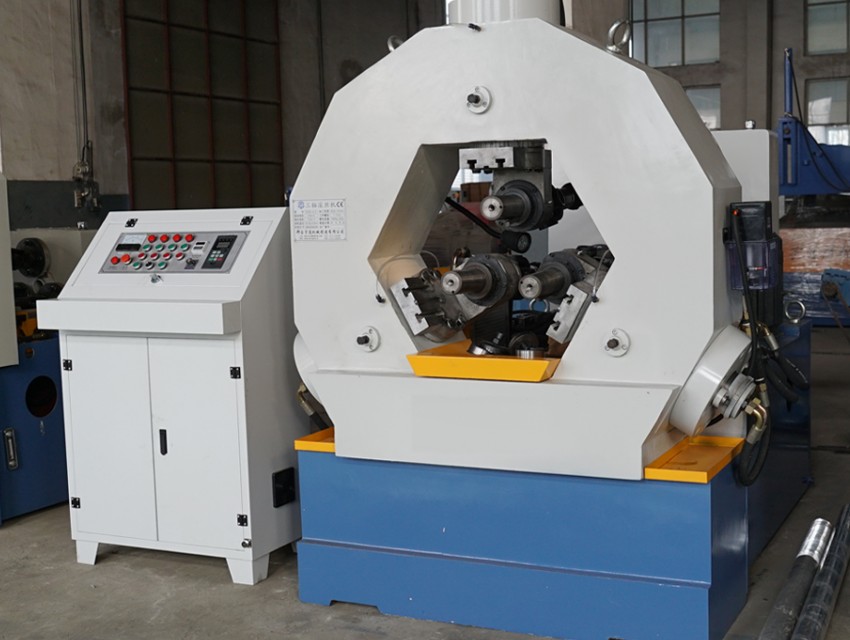

Three-Axis Thread Rolling Machine

• Equipped with three rolling dies

• The workpiece is surrounded and supported from three directions

• Provides more balanced force distribution

From appearance alone, the difference is clear:
two rollers vs. three rollers.

2. Key Functional Differences

Although both machines perform thread rolling, their processing capabilities and target applications differ significantly.

① Three-Axis Thread Rolling Machine: Ideal for Hollow Pipes

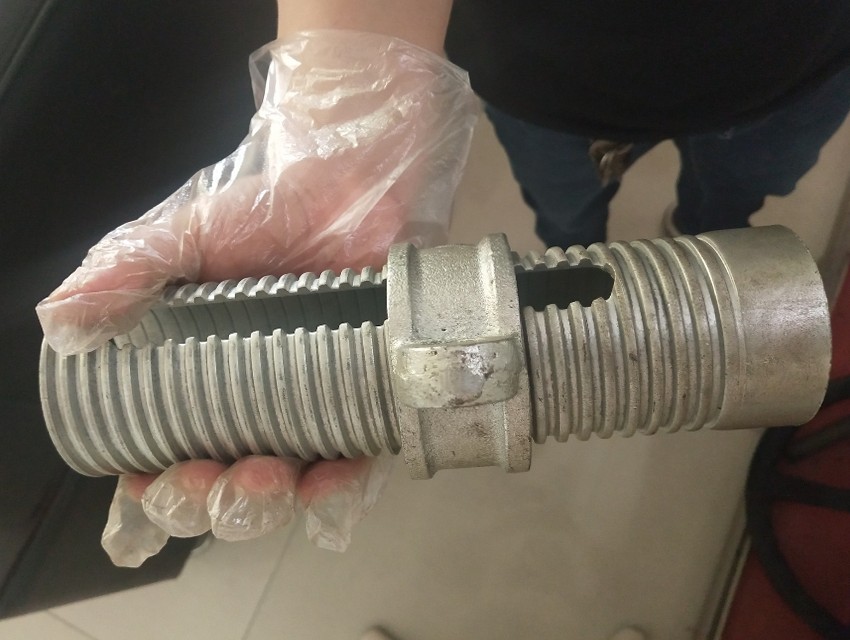

The three-axis design is mainly used for hollow workpieces, such as thin-walled tubes.

Why three axes?

• The three rollers form a triangular support structure

• This evenly distributes pressure around the pipe

• Prevents deformation or collapse of the workpiece

Advantages:

• Maintains the roundness of thin tubes

• Reduces the risk of eccentric deformation

• Ensures stable and precise thread formation

This makes it especially suitable for:

• Thin-wall pipes

• Hollow tubes

• Lightweight structural components

② Two-Axis Thread Rolling Machine: Best for Solid Materials

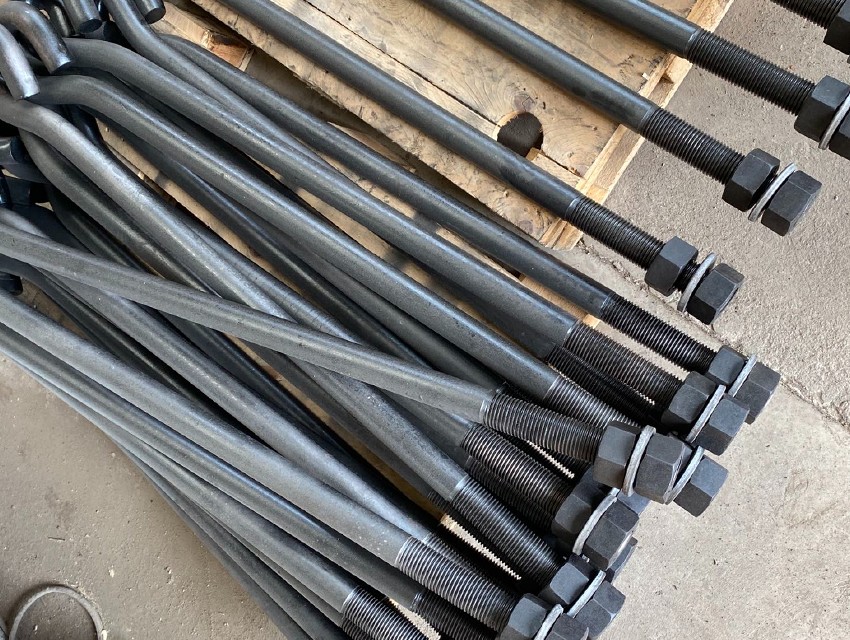

The two-axis thread rolling machine is primarily designed for solid workpieces, such as:

• Solid steel bars

• Bolts and studs

• Rebar and large steel rods

Key features:

• Strong rolling force

• High efficiency for mass production

• Flexible for different diameters

Whether processing small or large workpieces, you can simply select the appropriate machine model:

• Smaller models → for small-diameter parts

• Larger models → for heavy-duty applications

This versatility makes the two-axis machine the most widely used type in industries like:

• Construction

• Fastener manufacturing

• Heavy machinery

3. Performance Comparison

4. How to Choose the Right Machine

Choosing between a two-axis and three-axis thread rolling machine depends on your material and production requirements.

Choose a two-axis machine if you:

• Work with solid bars or rods

• Need high productivity

• Require flexibility in workpiece size

Choose a three-axis machine if you:

• Process hollow or thin-walled pipes

• Need to avoid deformation

• Require high precision for tubular components

5. Conclusion

While it is easy to distinguish between two-axis and three-axis thread rolling machines by appearance, their real difference lies in application and performance.

• Two-axis machines are powerful, versatile, and ideal for solid materials

• Three-axis machines provide balanced support and are perfect for hollow tubes

Understanding these differences will help you choose the right equipment, improve production efficiency, and ensure high-quality threading results.
